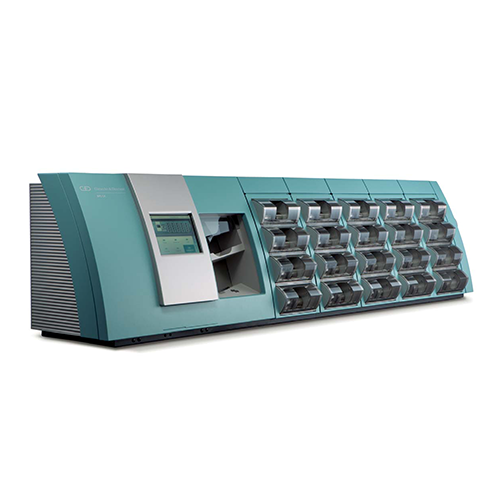

BPS-C4

Description

Key Features:

• Length: 1,260–2,556 mm (depending on configuration)
• Width: 515 mm – Height: 610 mm with open base module cover: 1,200 mm (approx.)
• Weight: 100–220 kg (depending on configuration)
• BN formats accepted: Width: 60–90 mm – Length: 100–180 mm
• Processing speed Singling rate: up to 12 BN/s
• Throughput Up to 40,000 BN/h
• System concept: – Desktop device – Single user – Seated or standing operation
• BN input: – Capacity for up to 800 loose banknotes, regardless of format – Continuous feeding possible during singling process
• BN output: – Up to 20 output compartments – Output compartments for 100 or 500 banknotes
• – Maximum number of banknotes per output compartment freely configurable – Reject compartment capacity: up to 200 banknotes
• – Separate fail-safe compartment for simple elimination of jams and accurate post-jam accounting
• Banknote accounting in reject compartment
• – Online: direct data entry at system – Offline: separate data entry via PC or cash management system
• System availability: Typically > 95% (depending on service conditions)
• Power supply: – 230 V, 50/60 Hz – 120 V, 50/60 Hz
• Power consumption 0.5–1 kVA
• Optional pneumatic module (air-supported singler) Power consumption: 240 VA
• Ambient requirements – Ambient temperature: 15–35°C – Relative air humidity: 30–80%, non-condensing
• Noise emissions 67–75 dB (A), in accordance with DIN EN ISO 11204
• Data interfaces – LAN/WAN (TCP/IP) – USB hub with 4 ports (USB 2.0) – Interfaces to cash center/vault management systems and to central computer – Remote service
• Certificates: – GS mark for “tested safety” – CE labeling – CCC-certified – GOST-certified

Technical Specifications:

• Adaptations for as many as 100 different currencies
• Further adaptations available for processing up to five currencies in succession on one machine
• Additional sensor extensions, e.g. NotaScan® Ink
• 4–20 output compartments with 100/500 banknotes per compartment
• Pneumatic module for airsupported singlers, especially with poor-quality banknotes
• Barcode reader
• Package solutions for special processes (e.g. header cards)
• External printers
• External solutions for banknote destruction, e.g. BDS systems from G&D
• External solution for invalidating banknote bundles, e.g. G&D’s BanknoteCanceller
• Video surveillance system (VSI) with image display of banknote processing data
• Comprehensive expert advice on optimizing cash center processes
• Cash center management software: Compass VMS® and BPS® Connect
• Extensive service offerings and packages, e.g. practiceoriented service and operator training, rapid technical support, customized maintenance agreements, and system updates
• High quality: The long service life and robust technology of products offered by G&D, the established market leader, help to safeguard your investments and enhance your ROI even in tough application environments.
• Strong versatility: The BPS C4 is a modular, scalable system that can be easily adapted to suit different types of processing. The system supports up to 100 individually configurable operating modes.
• Wide range of applications: Deployed all over the world, the BPS C4 can handle everything from standard banknotes to casino tickets; paper to polymer; new to heavily soiled or damaged items.
• Ergonomic design: Designed as a desktop system, the BPS C4 can be operated with users either sitting or standing. The compact layout of the singler, reject, and output compartments enables easy, fatigue-free operation.
• Innovative operation: The novel touchscreen design enables intuitive, language-independent operation.
• High throughput and low processing costs
• Only a single run is required for multiple sorting processes (up to 20 output compartments). Continuous banknote feeding by a single operator; optimum integration in cash center management software.
